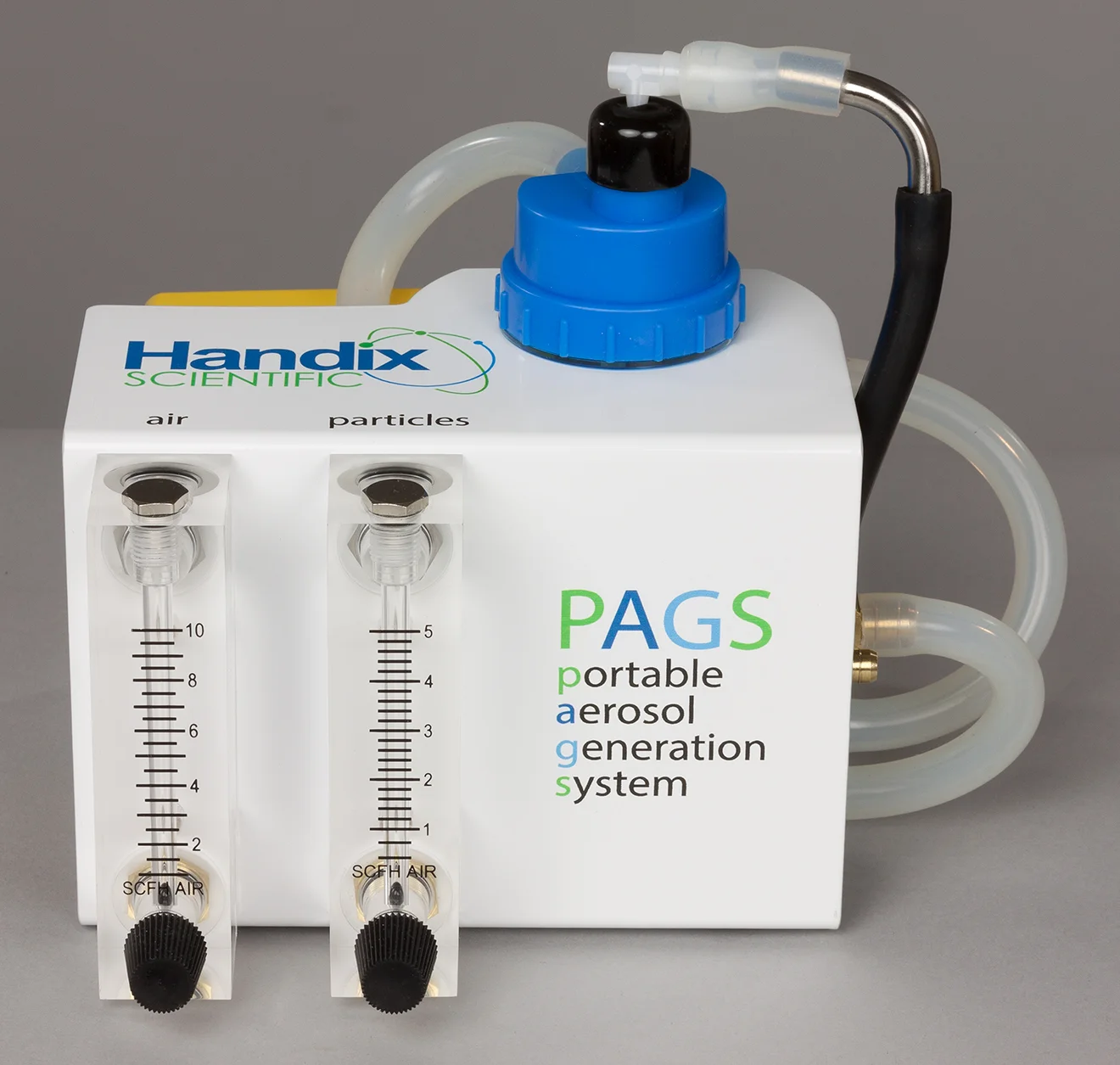

PAGS (Portable Aerosol Generation System)
The Portable Aerosol Generation System (PAGS) is a robust, light-weight, quiet jet nebulizer designed specifically for aerosol scientists. It is the go-to tool when we calibrate our aerosol instruments. Unlike most other commercial aerosol generators, it can be powered from its onboard rechargable battery, making it ideal for use during field deployments. It can also be plugged into a standard wall outlet for use in the laboratory. Two bolt-holes are provided for mounting the PAGS to racks or other equipment.
The PAGS is shipped with a multi-voltage AC-DC power adapter, automobile DC power adapter, four reusable sample bottles, silica gel gas dryer, and a hard-shell carrying case.
- Size: 6" x 7.5" x 6.25" (W x D x H)
- Weight: 3.0 lbs (PAGS + battery); 8.0 lbs with case)
- Battery runtime: ~1 hr
- Sound level: 55 dBA
- Power requirements: 100-240 VAC, 50/60 Hz
- Nebulization fluid rate: adjustable to max of ~30 ml/h
