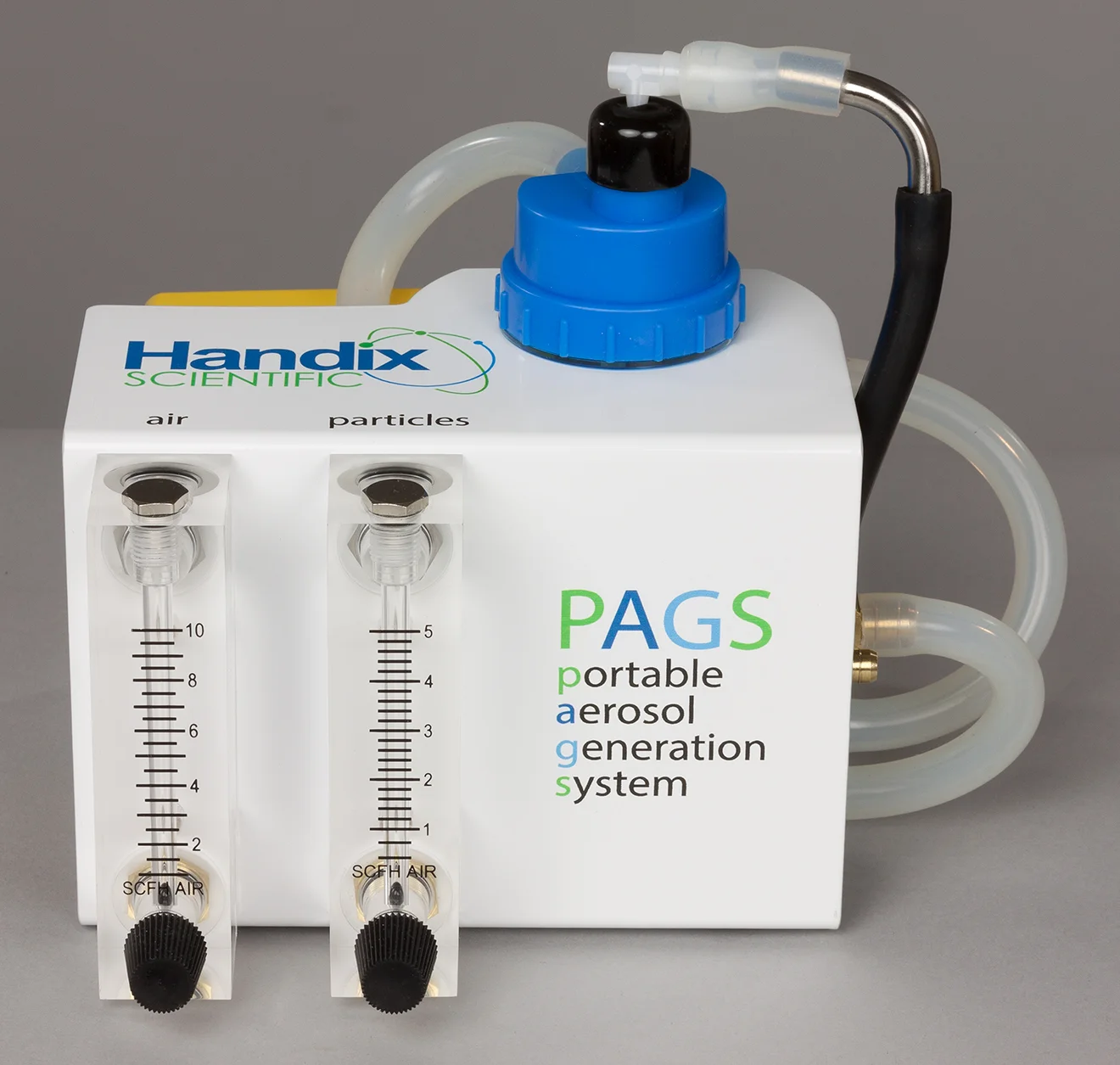

PAGS (Portable Aerosol Generation System)
The Portable Aerosol Generation System (PAGS) is a robust, light-weight, quiet, battery-powered jet nebulizer designed specificaly for aerosol scientists. It is our go-to tool when we calibrate our aerosol instruments. Unlike most other commercial aerosol generators, it can be powered from its onboard rechargable battery, making it ideal for use during field deployments. It can also be plugged into a standard wall outlet for use in the laboratory.
The PAGS is shipped with a multi-voltage AC-DC power adapter, automobile DC power adapter, four reusable sample bottles, silica gel gas dryer, bolt-holes for mounting PAGS to racks or other equipment, and a hard-shell carrying case.
- Size: 6" x 7.5" x 6.25" (W x D x H)
- Weight: 3.0 lbs (PAGS + battery); 8.0 lbs with case)
- Battery runtime: ~1 hr
- Sound level: 55 dBA
- Power requirements: 100-240 VAC, 50/60 Hz
- Nebulization fluid rate: adjustable to max of ~30 ml/h
